技艺参数表Parameters：

机型 Model	800	1000	1200
自粘卷材间距MAX.Parent Web Width	750mm	950mm	1150mm
放卷直徑Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直经Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
速率 Max.Machine Speed	0-200m/min	0-200m/min	0-200m/min
总功率 Total Power	5.5KW	5.5KW	7.5KW
分量 Machine Weight	2200kg	2400kg	2600kg
形状尺寸 Overall Dimensions	2200×2200×1300	2200×2400×1300	2200×2600×1300
分切宽度 Min.Slitting Width	圆刀Round Blade :3mm	直刀Razor Blade :3mm

作用： 外表层卷取复卷模切机配伍于铝铂、打印纸张、绝缘性資料、烫印膜、金属薄膜和珍珠棉（BOPP、PET、PE、PVC、PP、PS）等窄幅复卷分条

代表性：1、机械接纳孩子卷取及外观开战并收卷体例2、要装光电科技分手后纠编配置图、力值磁粉行车制动系统、聚散器配置图3、还配有活跃计米、活跃断电装配工4、主机箱调频可控硅调压 5、放料体例：气动放料、液压缸放料、无轴锥顶放料体例可以购

Uses:

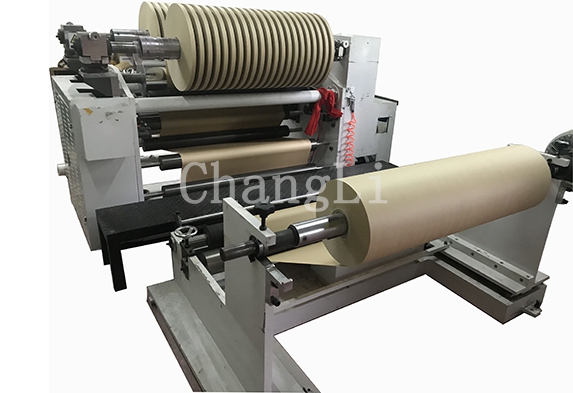

Surfꦆace coiling and rewinding slitting machine is sℱuitable for narrow-width rewinding slitting such as aluminum foil, paper, insulating material, bronzing film, plastic film (BOPP, PET, PE, PVC, PP, PS).

Features:

1. Th🗹e machine adopts winding and surface contact and winding method.

2, equipped with photoelectric automatic꧃ correction device, tension magnetic powder brake, clutch🍬 device

3ꦐ,🥀 equipped with automatic metering, automatic shutdown device

4, the host frequency control

5, feeding method: hydrau🎃lic feeding, cylinder feeding, no shaft cone top feeding method can be purchased
