共用占比该选果机首先要用做多种纸材，纸塑复合型类，膜类等装潢个人信息和彩盒个人信息的复卷修边分切机。

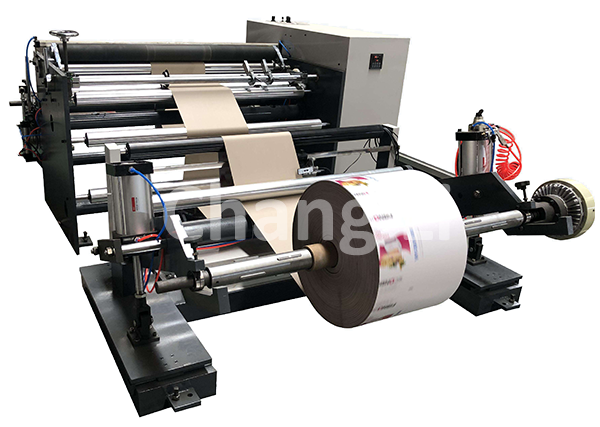

机转及上海特色 1.超声波焊接机认同电机驱动器定长上料，在高速度运动中坚持什么高精准度。2.PLC手触屏主动地的计米，米数主动地的场景人物风格的设定在。3.圆刀\\\\\\\\直刀纵切废边自觉排放口加装。4.气动式式会去主动送料，收、放护符配气胀轴。5.及时打断、停车当时擅自设置好，预送预测出收魔石再持续时间收料等功用。Scope of applicationThis machine is mainly used for re-winding and trimming of various papers, paper-plastic composites, film and other decorative materials as well as packaging materials.

Performance and characteristics1. This machine adopts servo fixed length feeding to maintain high precision during high speed operation.2. PLC touch screen automatically counts meters, meters are automatically set.3. Round knife \\\\\\\\ straight knife slitting automatic waste discharge device.4. Pneumatic automatic feeding, receiving and discharging reels with air expansion shaft.5. Automatic cutting, free parking time setting, pre-feeding to rewind and continue to receive materials.

首要手艺参数 Main Technical Parameters

cpu型号(hao) Model		CLFJ-B1000	CLFJ- B1300	CLFJ-B1600
防水卷材净宽 MAX.Parent Web Width		1000mm	130mm	1600mm
放(fang)卷尺寸 Max.parent Web Diameter		Φ800mm	Φ800mm	Φ800mm
收卷直径怎么算 Max.Rewinding Diameter		Φ300mm	Φ300mm	Φ300mm
速度 Max.Machine Speed		10-150m/min	10-150m/min	10-150m/min
定长精密度较Fixed length accuracy		±5mm	±5mm	±5mm
总输出功率 Total Power		3KW	3.5KW	4.5KW
参量 Machine Weight		1000kg	1200kg	1500kg
图(tu)型尺寸大小 Overall Dimensions 重任额定电压 Working Voltage		2600×2000×1600mm 二相(xiang)220V50HZ	2600×2200×1600mm 二相220V50HZ	2600×2500×1600mm 三相380V50HZ
纸(zhi)芯型号(hao)Paper core specification	25mm, 38mm,50mm等 (or according to your requirement)
