第一手艺人性能指标：Main Technical Parameters

仪器 Model	CLFQ-QW1300	CLFQ-QW1600
zui大资料大小MAX. Width of raw material	1300mm	1600mm
zui大放卷半径Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷截面积Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高机器人速率单位 Max.Machine Speed	10-400m/min	10-400m/min
总额定功率 Total Power	25KW	29KW
份量 Machine Weight	4300kg	4800kg
图型图片尺寸 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分切机大小 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

混用规模较该机共用于种类超较大型型sbs防水的分割，如30g/m2-400g/m2头层牛皮纸厂家生产的牛皮纸组成、白夹纸、淋膜纸、铝泊、PVC材料、锡纸等sbs防水的分割、复卷等。可以及特性1. 此机接受异步电机驱动器电气专业(矢量素材电气专业)放肆、主動锥度支撑力，中间的卷取体例。主机电源接受定频可控硅调压，努力越来越快两类衡正常运作。2. 拒绝计米、告警功能。收卷容忍A、B气胀轴的布置，卸装操控便利店。3. 放卷辨别是非光电科技自主纠偏纠错管理体系，使不原则文件能一半模切。4. 主動调刀标准（所在你应该要的分割要求一次性排好车刀），圆刀纵切废边主動直接排放组装。 5. 液压式拒绝高中低料，无轴装卷。6.导轨式自动排料装配工。

product manual

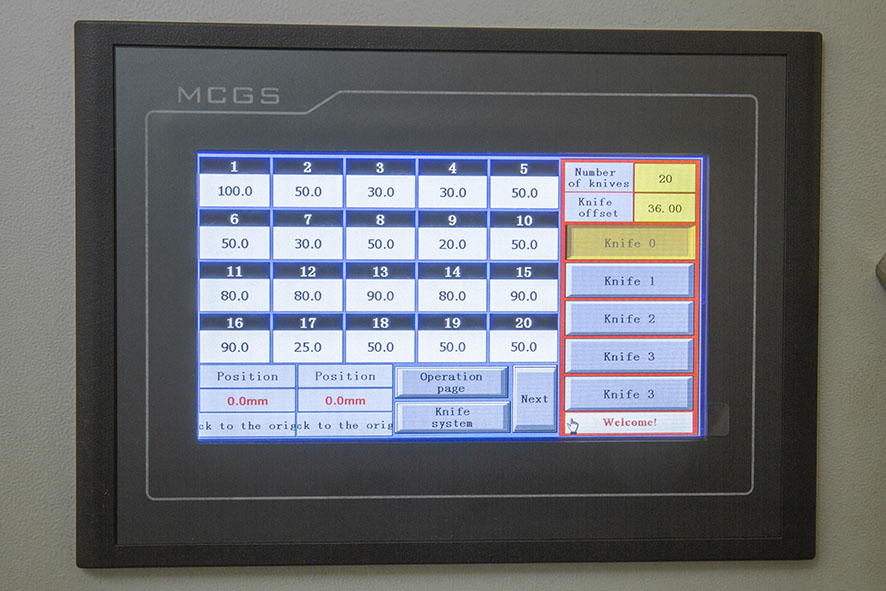

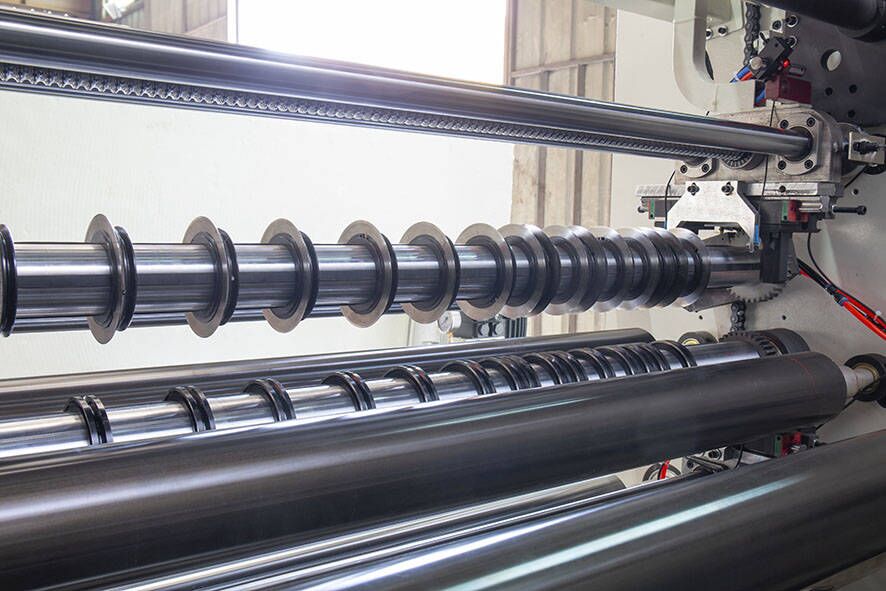

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
